Industrial Water Heaters

Overview

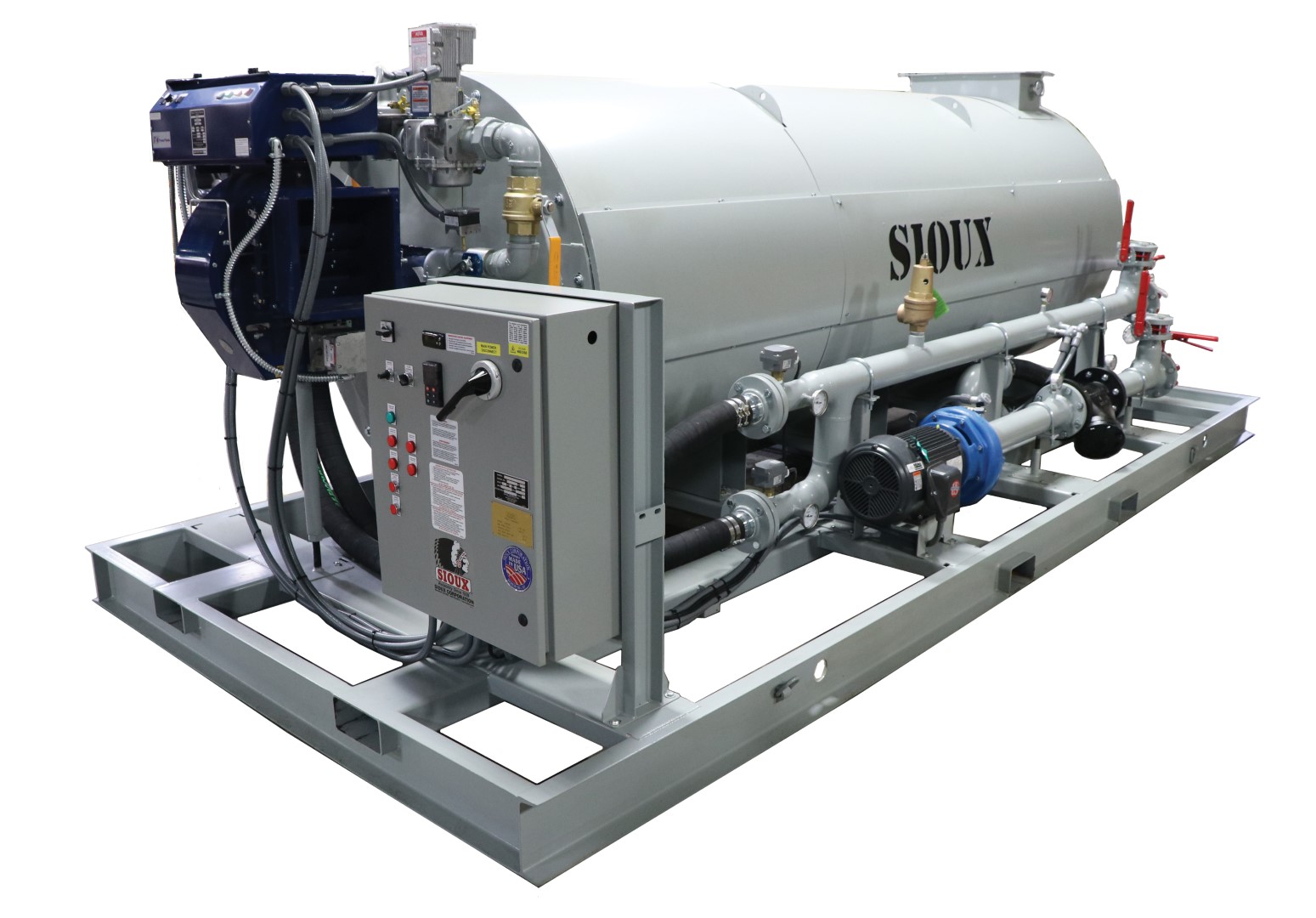

The Sioux HM Series water heater is designed to achieve tank temperatures of up to 170°F – 190°F (77°F – 88°F) quickly and accurately, with a heat output of 1,700,000 (HM-1.7) or 5,000,000 (HM-5) BTU/hour and high water flow rates.

Additionally, the heater's horizontal design allows for easy burner access, making service and maintenance a snap. The Sioux HM Series water heater combines speed, simplicity, and reliability ensuring that you have hot water when you need it!

Benefits

• Increase efficiency by reaching high tank temperatures quickly.
• Reduce the total cost of your operation by consuming less fuel thanks to an efficient design.
• Spend less time training personnel due to simple, intuitive controls that make operation easy.
• Identify maintenance needs early and prevent unexpected downtime with the help of monitoring tools.
• Keep maintenance costs low with easy access to common components and simple maintenance procedures. Be confident that your heater will be ready to work when you need it with Sioux’s 20-Year Reliability Guarantee.

HM-1.7 Features

• 1,700,000 BTU/hr net heat output.
• Adjustable flow rate of 60 to 100 GPM through parallel three-pass coil.
• Digital temperature control system can reach 170°F tank temperature without burner cycling.
• Horizontal design provides easy access to burner.
• Rugged 5HP (3.7kW) single-stage centrifugal pump circulates water between your water tank and the heater.
• Safety controls include high-temperature limit switches, flow switches, and ASME-rated pressure relief valve.
• Diagnostic tools include indicating/alarm lights and inlet/outlet pressure gauges and thermometers.
• Inlet water Y-strainer removes large particles.
• VFD for precise outlet water temperature control.
• Modulating burner option reaches highest temperatures faster.
• Built to ASME Code Section IV. Each unit is inspected and registered by serial number.
• Meets UL-508a and CSA C22.2 #14, AGA, CGA, and CRN.

HM-5 Features

• 5,000,000 BTU/hr net heat output.
• Adjustable flow rate of 150 to 380 GPM through parallel three-pass coil.
• Digital temperature control system can reach 170°F tank temperature without burner cycling.
• Horizontal design provides easy access to burner.
• Rugged 10HP (7.5kW) single-stage centrifugal pump circulates water between your water tank and the heater.
• Safety controls include high-temperature limit switches, flow switches, and ASME-rated pressure relief valve.
• Diagnostic tools include indicating/alarm lights and inlet/outlet pressure gauges and thermometers.
• Inlet water Y-strainer removes large particles.
• VFD for precise outlet water temperature control.
• Modulating burner option reaches highest temperatures faster.
• Built to ASME Code Section IV. Each unit is inspected and registered by serial number.
• Meets UL-508a and CSA C22.2 #14, AGA, CGA, and CRN.

Overview

The HWP Series is a self contained circulating water heater that is ideal for remote locations or construction sites. The Sioux HWP water heater combines the rugged Sioux Water Heater/Pumping System combination of the M Series with a 1,000 gallon (3,784.3 liter) atmospherically-vented water tank. The unit has multiple pumps: one for each million BTU section to circulate water through the industrial hot water system, and one to discharge water.

Features

• 1-3 Million BTU/hr. (293-879 KW).
• Available in Oil, LP, Natural Gas, or combination burner.
• Standard with seven-stage circulation pump(s) and one single-stage discharge pump.
• Stainless steel tank option available.
• Alternate electricals available.
• Third party approved to UL508A and CAN/CSA-C22.2 No. 14-10, ensuring that the entire control panel assembly meets the UL and CSA standards. Canadian Registration Number (CRN).

Tank includes:

• Liquid level sensors with water solenoid valve.
• Liquid level sight gauge.
• Adjustable tank temperature control with immersion well.
• Thermometer.
• Ladder.
• Inspection port.
• Motorized draft diverter/damper.
• Optional insulation package available.

Overview

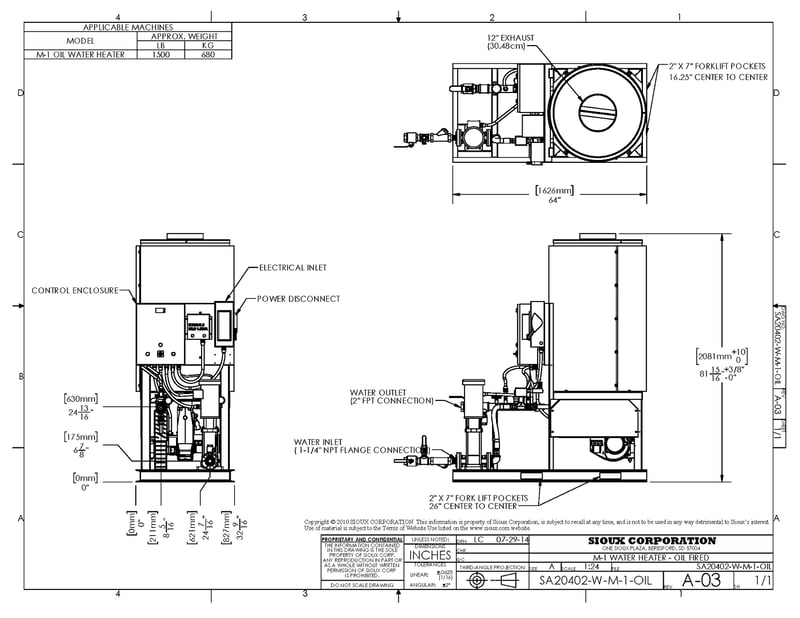

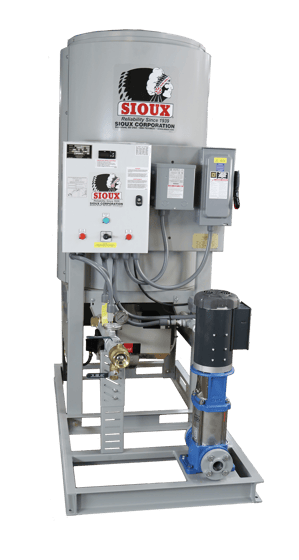

The Sioux M Series water heaters’ three-pass coil design is superior to alternative heat transfer methods, yielding simple, long-lasting performance which reduces fuel consumption, saving you money.

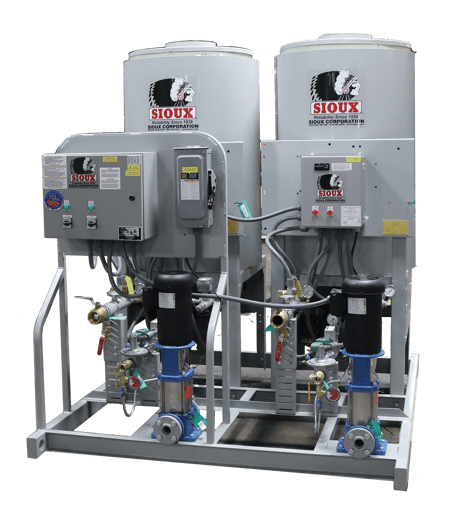

Designed as modular units, the Sioux M Series water heaters allow you to make a minimal investment to start, with the option to expand your system as your operation grows. This also provides the coil water heaters a small footprint.

Coming pre-plumbed and pre-wired, these heaters are simple to install. Just connect the Sioux water heater to the required utilities and you’re ready to go.

Features

• 1, 2 or 3 Million BTU/hr ratings available
• Standard primary electricals are 230V/3Ph/60Hz, 460V/3Ph/60Hz, 380V/3Ph/50Hz, 575/3Ph/60Hz, and 230/1Ph/60Hz
• Electrical control box includes starters for each heater/pump section.
• Include a service-rated electrical disconnect switch, eliminating the need to add a second service-rated disconnect switch as required by the National Electrical Code.
• Indicator light to alert operator that the low water flow limit switch has shut down the burner due to inadequate water flow.
• The temperature control switch and the manual reset high temperature limit switch water heater shut off burner in case of excessive water discharge temperature.
• ASME-rated pressure relief valve opens to discharge water in case of excessive buildup.
• Pressure gauges and bi-metal thermometers on both inlet and outlet allow monitoring of differences between incoming and outgoing water temperature and pressure. Y-strainer on water inlet ensures foreign particles do not enter heater water supply.
• Available in Oil, LP or Natural Gas.
• Numerous accessories available to assist with installation.
• Custom designs and alternate electricals available.
• Optional stainless steel wetted parts for a variety of industrial applications including heating sodium cyanide for heap leaching, etc.
• Third party approved to UL508A and CAN/CSA-C22.2 No. 14-10, ensuring that the entire control panel assembly meets the UL and CSA standards. Canadian Registration Number (CRN).

The Sioux M-415 Water Heater is designed for used on Volumetric Mobile Mixers and can be mounted directly on a truck.

• 415,000 BTU/hr; heats 500 gallons to 100°F (37.8°C) in one hour.
• Standard 12 volt DC or optional 120 volt AC.
• Honeywell Protectorelay with flame monitoring burner control.
• Rotary gear type pump with stainless steel shaft.
• Fully enclosed TEFC 1/2 HP truck heater motor.
• Inline temperature gauge with adjustable tank temperature control and pressure gauge.
• Electrical controls with on/off switch for water circulation pump and burner.

Overview

The PWP Series is a self contained system designed for applications where hot water is needed on a constant basis with a smaller 300 gallon (1,135.62 liter) tank. The Sioux PWP water heater includes two pumps, one to circulate water through the heater and one to discharge water from the system. System comes complete with motorized draft diverter/damper. This system is ideal for precast/ pre-stress concrete producers.

Features

• 1 Million BTU/hr. (293 KW).
• Available in Oil, LP, or Natural Gas.
• Standard with seven-stage circulation pump(s) and one single-stage discharge pump.
• Stainless steel tank option available.
• Alternate electricals available.
• Cold water lockout- prevents cold water mixing with hot water.
• Third party approved to UL508A and CAN/CSA-C22.2 No. 14-10, ensuring that the entire control panel assembly meets the UL and CSA standards. Canadian Registration Number (CRN).

Tank includes:

• Liquid level sensors with water solenoid valve.
• Liquid level sight gauge.
• Adjustable tank temperature control with immersion well.
• Thermometer.
